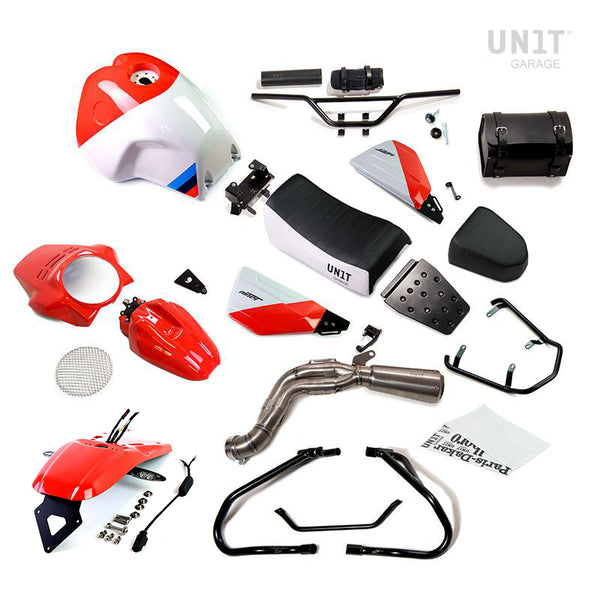

Unit Garage BMW R9T Paris Dakar GR86 Kit With Accessories
- Reproduces the look of the legendary R80 GS PD
- Added comfort and ride
- New tank allows better handling and better front load due to shortened tank
- Kit comes finished and ready to bolt on
- Fittings included
- Easy to install
Lead time on this item will be around 2-5 working days.
Fitting advice and details;
The fuel tank re-uses the original fuel cap and fuel pump of your original bike, the reserve light will still work, and you will not have to tamper with anything, the kit is completely reversible. The new fuel tank capacity is 22.5 litres.
The seat is divided into two parts. The rear seat of the passenger can be removed quickly using the original key provided with the bike. New seat height: 850mm (the same as the original Urban GS seat)
Side panels are made in ABS with a matt black finish and graphics under a clear laquer.
Kit NineT PARIS DAKAR
Tank: The fuel tank in Nylon re-uses the original fuel cap and fuel pump of your original bike, the reserve light will still work, and you will not have to tamper with anything, the kit is completely reversible. The fueltank comes in the Light white of the Urban GS. The original active coal filter (canister) remains the same of your original bike. All mounting brackets are supplied in the kit. The capacity is 22.5 litres, which if we calculate an average consumption of 17.7 km/litre will allow a range of 400 km ... more than enough to travel around the world!
NB: TÜV approved
Seat: The seat is divided into two parts. The rear seat of the passenger can be removed quickly using the original key provided with the bike. This allows you to carry a considerable amount of luggage when you travel alone.Seat height: 850mm (the same as the original Urban GS seat)
Side panels: Made in ABS with a matt black finish and graphics under a clear coat. Comes complete with mounting brackets, screws and anti-vibration wellnuts.
Rear luggage rack with passenger grip
Luggage rack made of steel tubing with matt black epoxy powder coating. Completes the rear part and is provided with handles for the passenger, it is very simply fixed to the frame underneath the passenger seat. Lightweight, practical and equipped with guides for fixing straps. Improves the aesthetics of the bike.
NB: the 2 leather straps for the luggage rack are not included and can be purchased separately (Available in black or brown).
Mounts on all nineT models. Maximum load 5kg.
Rear Luggage Bag in grain leather nineT
Rear Luggage Bag in grain leather with nylon thread hand madein Italy. For all model.
Size: mm 200 x 280, H 150. All the parts necessary for assembly are included.
Headlight protection Grill black
It was not easy to build a headlight gril for the nineT.
We wanted a clean and minimalistic gril ... and I would say that we did it!
Available in black or natural steel, can be fitted in a couple of minutes without having to tamper with any of the original parts of the bike and can be removed at will.
NB: not approved for road use; pictured headlight mounting ring has been repainted black; black ring not included.
Windshield Fenouil+front fender
The nineT Scrambler and the nineT Pure have the front headlight positioned lower than the nineT Urban GS.
With this kit you can restyle the front, making it very aggressive and at the same time having a windshield and a hight mudguard.
Reminisent of the look of the legendary R80 GS PD adapted and revised for the R nine T series. Complete kit with raised headlight support in aluminium, front fender and windshield made in ABS. finished with transparent top coat and available in 3 colors: Matt Black, Alpine White and Urban GS Light White. They mount without any modifications to the bike. It has good wind protection and comes complete with instructions, screws, and mounting brackets.
Engine protection crash bars nineT
These crash bars integrate seamlessly with the frame of the R nineT , and offer very good protection when the bike is dropped.
Made in treated steel with high resistance powder coat.
Easy to install, it comes complete with distance bushings and screws.
The majority of the maintenance work can be performed without disassembly of the bars.
Plate holder high nineT
We did not like the original plastic and wanted to recreate a continuity of the original passenger frame in steel tube. The result is fantastic, once assembled it really blends in with the rest of the bike. Made in steel tube with epoxy powder-coat; complete with an aluminum plate holder with everything ready to accommodate the original rear light. It is very easy to fit and allows you to significantly change the character and style of the bike in the rear by shortening and raising the license plate and rear light. Complete with supports for the original or the aftermarket arrows (arrows not included.) and everything you need for a correct installation. It is compatible with our side pannier frames, passenger grip or rear luggage rack.
License plate dimensions: 185 x 185 mm
Handlebar bumper black
Handlebar bumper in black leather. It is very easy to install on any handlebar crossbar and protects the face in case of a crach.
Length 26cm, diameter 6cm.
Pair of CNC machined handlebar ends with glossy black anodized finish with the Unit garage logo. The two M12 fastening screws are included.
Handlebar nine T Ergo
For the nineT we wanted "Old School" handlebars with a constant diameter (22mm). These handlebars give your nineT an agressive look but with a more comfortable riding possition. Made of steel with powder coated matte black finish, it comes pre-drilled with everything you need to mount it on the original risers and fit the original controls. It does not require any modifications to cables or brake lines. NB: The 1613 Ergo handlebar is as high as the original OEM but with a more comfortable fold (see measures in the immages) Compatible with heated grips.
Luggage rack base plate
Nine-PD aluminum base rack with epoxy powder matt black finish.
This plate, created for the nineT-PD kit, is fixed to the rear frame of the bike, to widen the load platform when removing the passenger seat. It can be mounted with the rack carrier cod 2014: it comes complete with fixing screws and anti-slip rubber. Perfect to accommodate our classic leather bag cod 122509_01 or the Duffle bag U013 and U015.
For the nine T we wanted a special pipe , but it is perfectly homologated for road use! Steel connector with titanium silencer entirely handmade,in perfect moto gp style. It weighs about 2,8 kg lighter than the original and has a removable DB-Killer. It mounts easily in just a few minutes onto the passenger frame on the original anti-vibration grommet. If you want to remove the passenger frame and make the rear of the bike really aggressive, you'll have to buy our support code "1611 supp high". The sound will make you crazy,and the engine resposiveness ... as well!
NB: Comes with homologation report. Protection in carbon fiber not included.
Toolbag made and hand-sewn in very strong raw cotton and leather. Reminiscent of the old R80 toolbags in size and shape; for your repairs in style. Measures: open cm 20x36 rolled cm 20x10
N.B.: Tools not included
Compatible with all nineT models, it comes complete with everything needed for assembly. Video instructions included.
